BetaFPV SMO 4k HD Camera

This is a BetaFPV SMO 4k HD Camera.

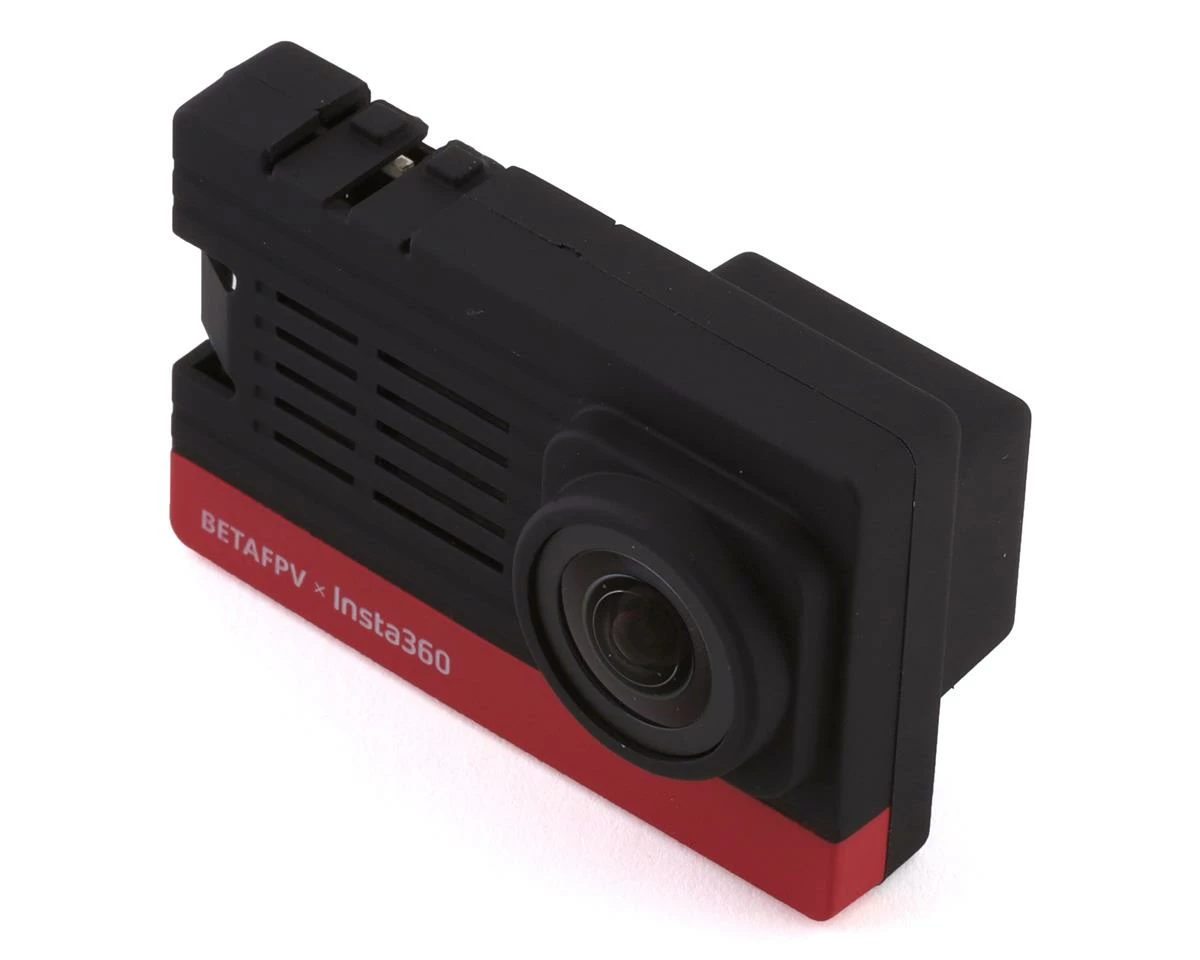

• SMO 4K Camera is an ultralight action camera that is specially designed for FPV drones. Developed by BETAFPV and Insta360, it only weighs 30g and can be easily mounted on a variety of FPV drones including micro cinewhoop like Beta95X V3, 3-4” ducted quads, 4-5” long-range FPVs and fixed-wing FPVs.
• With SMO 4K camera’s 4K wide-angle shots and FlowState stabilization function, pilots can shoot 4K wide-angle video with greater detail, smoother stabilization and better dynamic range.
• Support using the radio transmitter to control SMO 4K Camera on power on/off and start/stop recording remotely, making it more convenient to operate.

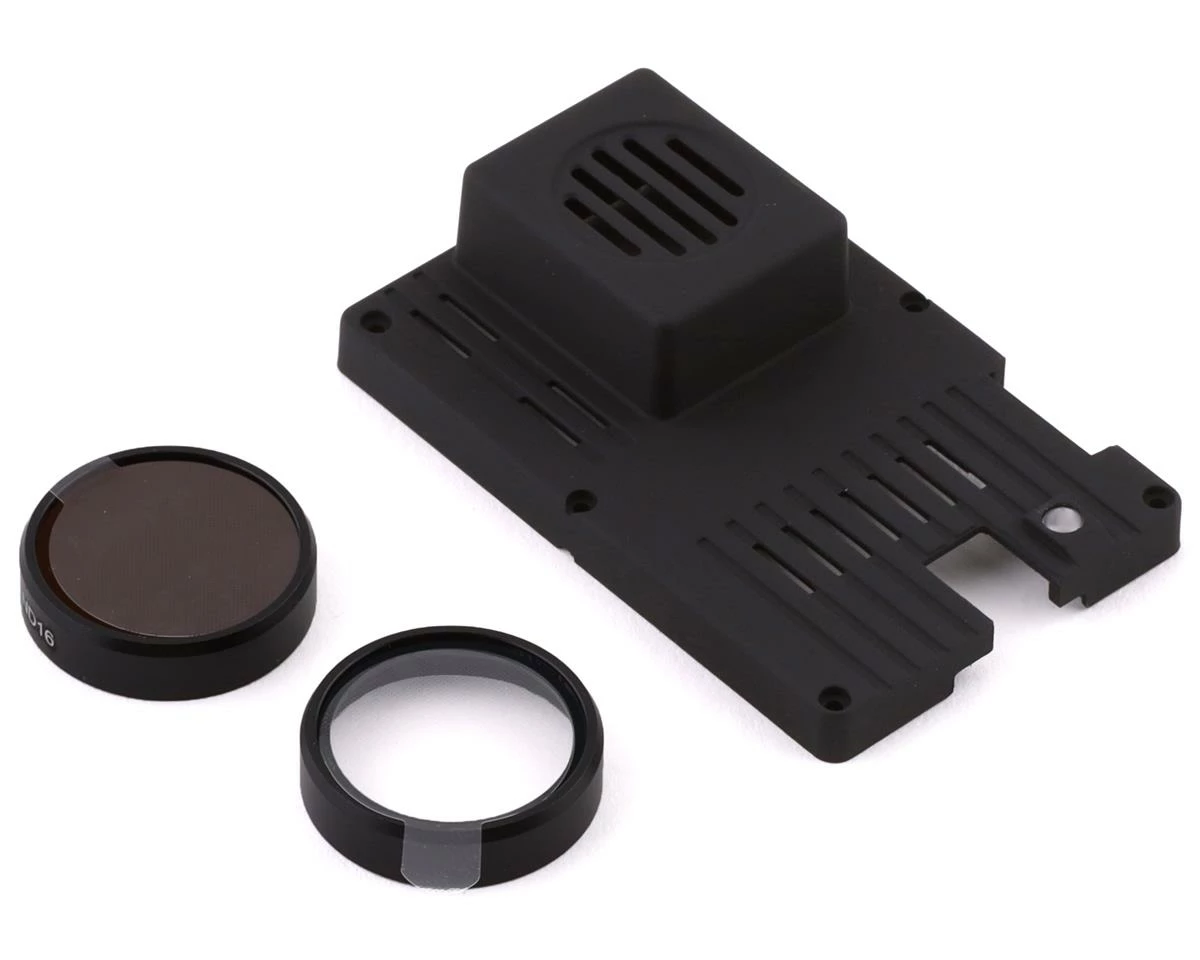

• UV filter and ND16 filter are both provided in the package. ND filters not only can prevent the issue of jello generated in the insane flight but also acts as a lens protector. Meanwhile, if pilots are flying indoors or at dusk, the UV filter would be your best choice to protect your lens.
• The power supply range is 6V-27V, supporting 2-6S Lipo batteries. With the 4-pin pluggable connector, pilots can easily connect the SMO 4K with your flight controller for power supply and recording.

Item: SMO 4K Camera

Weight: 30g

Size: 61.5mm×39.4mm×29.2mm

Power supply range: 6V-27V (2S-6S Li-Po battery)

Lens aperture: F2.8

35mm equivalent focal length: 16.4mm

Video resolution: [email protected]/25/30fps, [email protected]/25/30/60fps, [email protected]/25/30/60/100fps, [email protected]/25/30/60/120/200fps

Video format: Inv (export through APP or Studio)/ Mp4

Video code: H.264 / H.265

Video mode: Normal video, HDR video, Time-lapse photography, TimeShift mobile time-delay video; Pro stabilization mode (Use Insta360 App/Studio or supported plug-in export to implement FlowStateStabilization)

Video maximum bit rate: 100Mbps

Bluetooth: BLE4.0

Wi-Fi: 5G (standard range approx. 2m)

Micro SD card: UHS-I V30 speed level and above recommended, exFAT (FAT64) format (maximum storage capacity is 1T)

Operating environment: -20°C ~ 40°C

LED:          STATUS:      DESCRIPTION:

Blue light   Flashing      SD Card Error

Blue Light   Solid          Power on & SD card is normal; Battery signal detected

Red Light    Flashing     Recording

Red Light    Solid          Battery Signal Detected

• (1) SMO 4K Camera
• (1) Spare Camera Bottom Cover
• (2) SH1.0 4-Pin Power Cable
• (1) Transparent UV Filter
