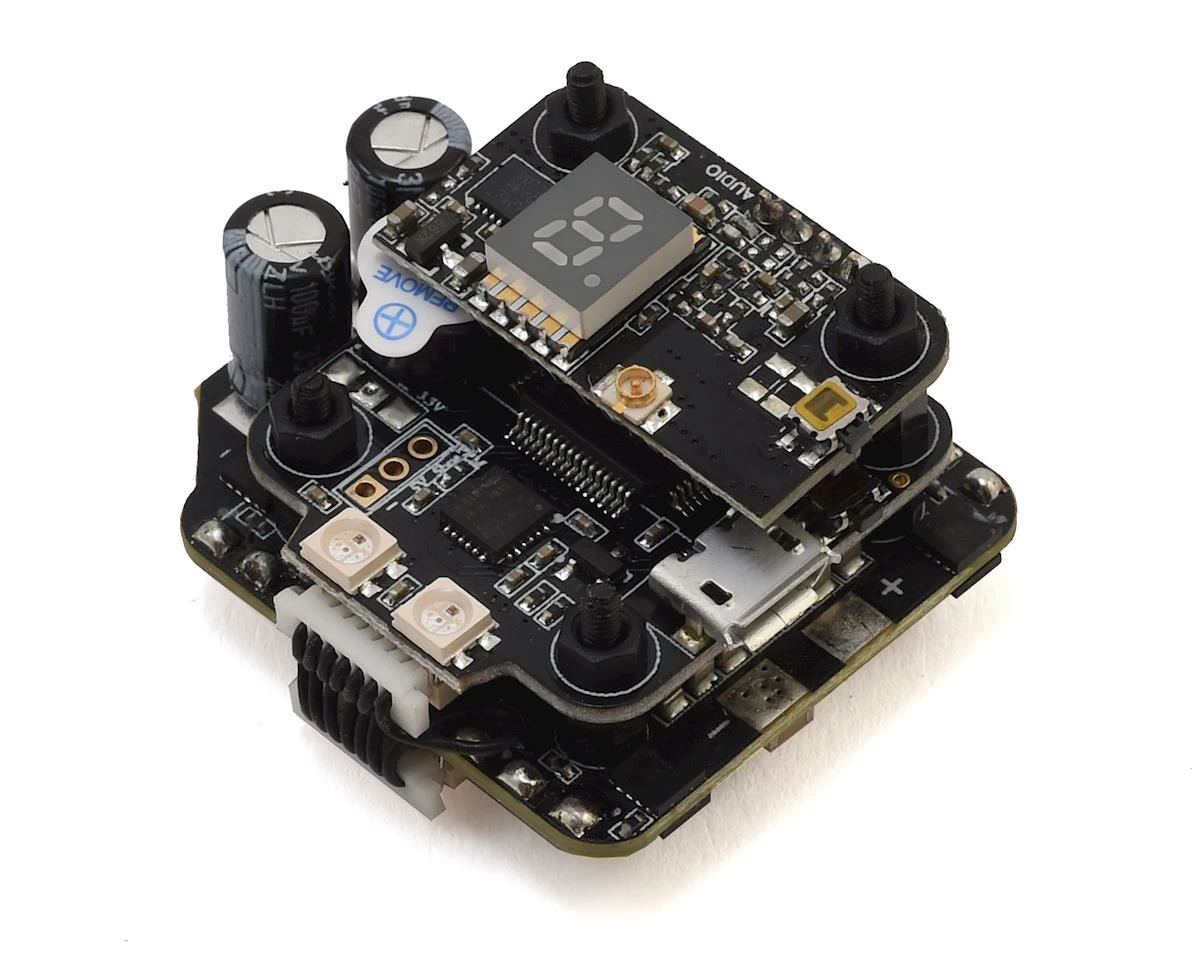

EMAX Mini Magnum 2 AIO Flight Controller Stack w/Flight Controller, Video Transmitter, Receiver, & PDB

EMAX Mini Magnum 2 flight control system makes building a high-performance FPV racer for racing or freestyle extremely easy. This tightly integrated system packs the FC, ESC, RX, VTX, PDB, current sensor and OSD together, which can be easily upgraded. It significantly reduces the time in soldering and figuring out what to do, thus, it can help you to get a flawless drone with nice clean build within a short time.

Grab a Mini Magnum 2 for your next micro and ultralight build. Built with a 20×20 form factor, the possibilities are nearly endless on what to install this stack on!

• F4 Flight Controller
• 5.8G VTX, 25mW / 200mW switchable. Also includes a 5.8G whip antenna and SMA adapter
• Bullet 35A 4-in-1 ESC + current sensor, as well as freedom to choose DShot, Multishot, Oneshot125

• F4 Flight Controller:
• (OMNIBUSF4 Firmware)
• STM32F405 MCU
• MPU6000 accelerometer/gyro (connected via SPI)
• On-board OSD
• On-board Buzzer
• Integrated 5V/3A BEC
• Dedicated PPM/ Sbus receiver input
• 30x27mm board with 20mm mounting holes
• 35A BLHeli_32 ESC:
• Continuous current 35A ( max burst 40A)
• Supply voltage 2-6S Lipo( 1700kv Motor LIMIT for 6S )
• STM32F051K6U6 MCU
• BLHeli_32 firmware,support DSHOT,MULTISHOT,ONESHOT125
• Top quality MOSFET
• 3oz high TG PCB board
• 32x37mm board with 20mm mounting holes.
• Current Sensor
• VTX:
• Frequency band: 5658-5945MHz (FCC Compliant Channels / with HAM unlock)
• SmartAudio support
• Channel: 37
• Transmit power: 13dBm/23dBm(25mW/200mW)
• Supply voltage: 4.5V-5.5V
• Antenna port: 50Ω
• Stack:
• Total weight: 17.21g
• 20x20mm Mounting Holes
• 32x37x17g Dimensions
