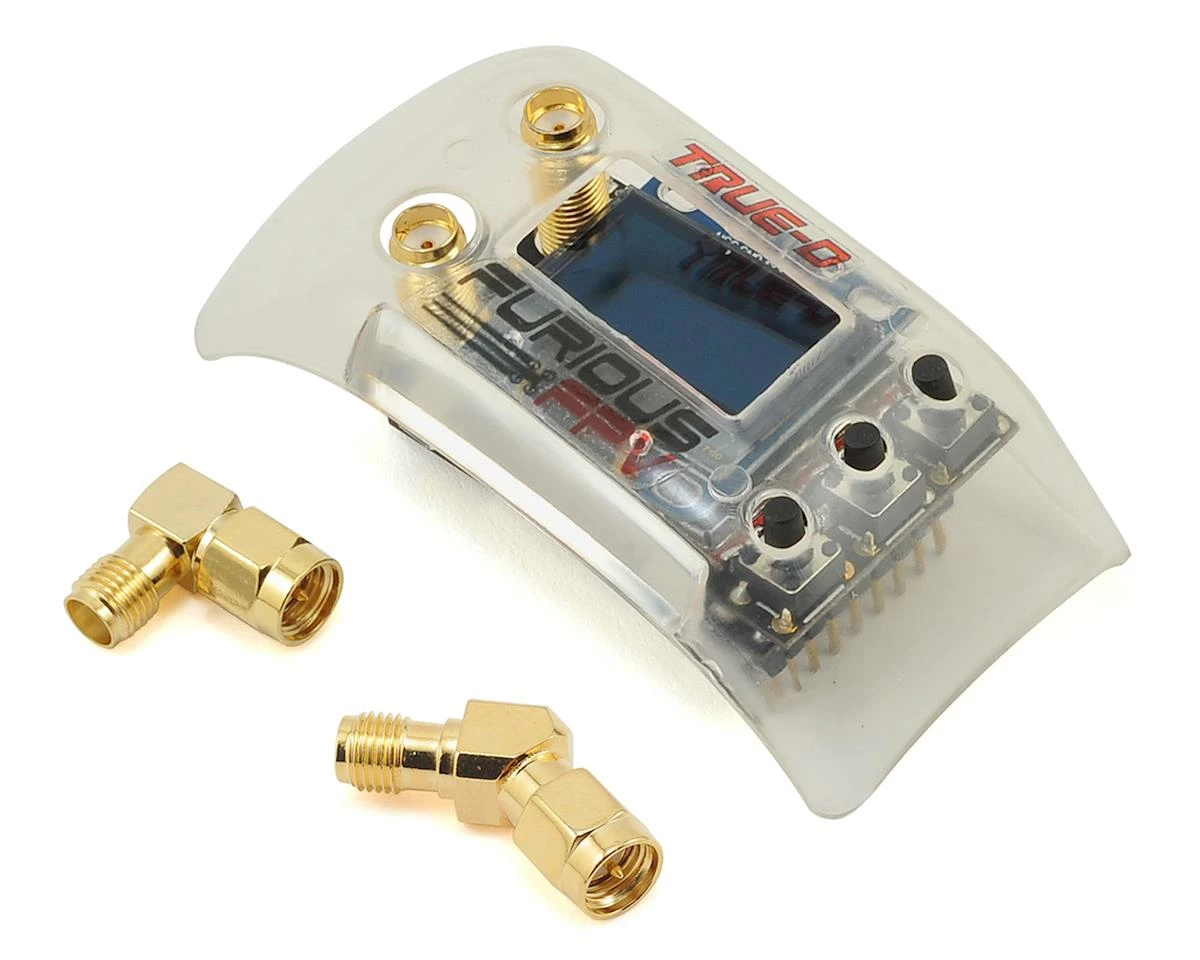

Furious FPV True-D V3.7 Diversity Fat Shark 5.8Ghz Receiver

The Furious FPV True-D V3 5.8Ghz Diversity Video Receiver Module is an evolution of the original True-D receiver system. The True-D V3 features refined ergonomics and improved functionality, which will offer unrivaled performance on your next FPV flight session. Furious FPV has now added a multi button menu access system instead of the single button and scroll wheel type device. The multiple buttons allow for ease of access for menu navigation, and allow the firmware of the receiver to integrate seamlessly with the FatShark buttons.

Unlike average diversity systems that simply alternate channels at predetermined points, the Furious True Diversity system actively searches for the greatest level of signal strength – choosing the highest strength output for maximum video clarity. The V3 True-D system offers improved resolution RSSI, and additionally has a refined antenna switching algorithim. This equates into the highest level of video clarity, allowing this active search system to always find the very best signal strength available. Utilizing smooth switch video capability, the True-D Diversity system alternates between the most optimum signal strength in instantaneous fashion, providing the ultimate in video clarity when it’s needed the most. This diversity technology provides ultra clean video with increased overall range, providing a cutting edge advantage with maximum levels of FPV clarity.

With a total of (40) available channels, the True-D is flexible, offering Manual Channel Setup, Auto Search Mode and Working Channel Mode. These different selections provide the end user with total control, allowing you to select what works the very best when it comes to your FPV systems. With the use of an easy to adjust toggle, you can rapidly locate every function the True-D offers, providing instant levels of setup and adjustment with a simple push of the finger.

Compact and designed to be housed within the FatShark Dominator goggle sets, the Furious True-D system is a true “plug and play” setup that will pay massive dividends when it comes to pushing your FPV to the limits. With this level of diversity technology packed within an easy to use system, you are moments away from the very best FPV upgrade available today, providing epic levels of FPV clarity.

Note: As of 11/2/17, all units are shipping with Firmware V3.6

Features:

• V3 Hardware with 3 Button Layouts
• Single Press Button via FatShark or True-D Receiver
• Power On/Off Function
• Improved RSSI & Antenna Switching Algorithim
• Built In Low Power Buzzer
• USB Port for Easy Firmware Updates
• True Diversity System Functionality
• Smooth Switch Video Switching Technology
• Raceband Channel Ready
• Multiple Channel Modes – Auto, Manual & Working Modes
• Ultra Compact
• Designed for the FatShark Dominator V2 & V3 and HD V1 & V2 Goggles, Dominator SE goggle and HDO’s
• Built In Easy View LCD Screen for the Ultimate in Setup Ease

What Does Diversity Do For Me?

A Diversity receiver system is (2) receivers built into (1) package, allowing the pilot to choose (2) very different antenna systems for maximum levels of video range & clarity.

The most common antenna used is an omni-directional circular polarized antenna, which provides a specified element of range all around you. However, this radius of video range is limited, so after a specified distance, the video signal will degrade and fall away.

With a Diversity receiver, a 2nd antenna system can be used, allowing a more directional antenna to be chosen for much greater range. Directional antennas far outpace omni directional antennas in overall distance, and even though the beam pattern is more narrow than an omni antenna, directional antennas will certainly increase the given range available, equating to solid video clarity without frustrating signal losses.

With Diversity, you don’t need to choose (1) antenna style over another. By pairing (2) vastly different antenna systems for a perfect mix of range and video clarity, the True-D Diversity system rapidly switches between the (2) built in receivers, allowing the best overall signal strength to be utilized for maximum video clarity.

True Diversity Technology
With (2) receivers working together as (1), your video clarity & overall range is optimized as the True-D Diversity system actively searches for the highest signal quality for maximum video clarity.

Smooth Switch Video
Instantaneously switching between antennas for optimum signal strength, Smooth Switch technology keeps your head in the race with the very best video quality available.

Easy View Simplicity
Make FPV ultra simple with Easy View technology. With Easy View, you are a finger press away from every adjustment you could possibly need, displayed in an easy to ready layout.

Working Mode
Offering you the ability to save (8) total channels, Working Mode makes it easy for you to choose the best channel based upon past preferences for the best known performance.

Manual Mode
Straightforward and to the point, Manual Mode gives you complete control, allowing you to select any of the (40) channels available for optimum FPV.

Auto Mode
Make life simple. With Auto Mode, the True-D system does all the work for you by locking onto the video frequency being used, allowing you to simply fly without any fuss or bother.

40 Channel Ready
Optimized with a total of (40) available channels, the True-D covers all the bases, allowing you to use nearly any video transmitter available today.

Ready, Set, Raceband
Ready to race with built in Raceband frequencies, the True-D incorporates Raceband support for track ready application.

Dominate the Dominators
Designed specifically for the FatShark Dominator V2 & V3 goggles, the True-D optimizes the very best in FPV technology with the pinnacle in video clarity.

Specifications:

• SMA Style: SMA Jack Connector / Female
• Working Frequency: 5.8GHz
• Application: FatShark Dominator V2 & V3 and HD V1 & V2, Dominator SE Goggles
• Number of Channels: (40) Channels

Includes:

• (1) Furious FPV True-D Diversity Receiver System

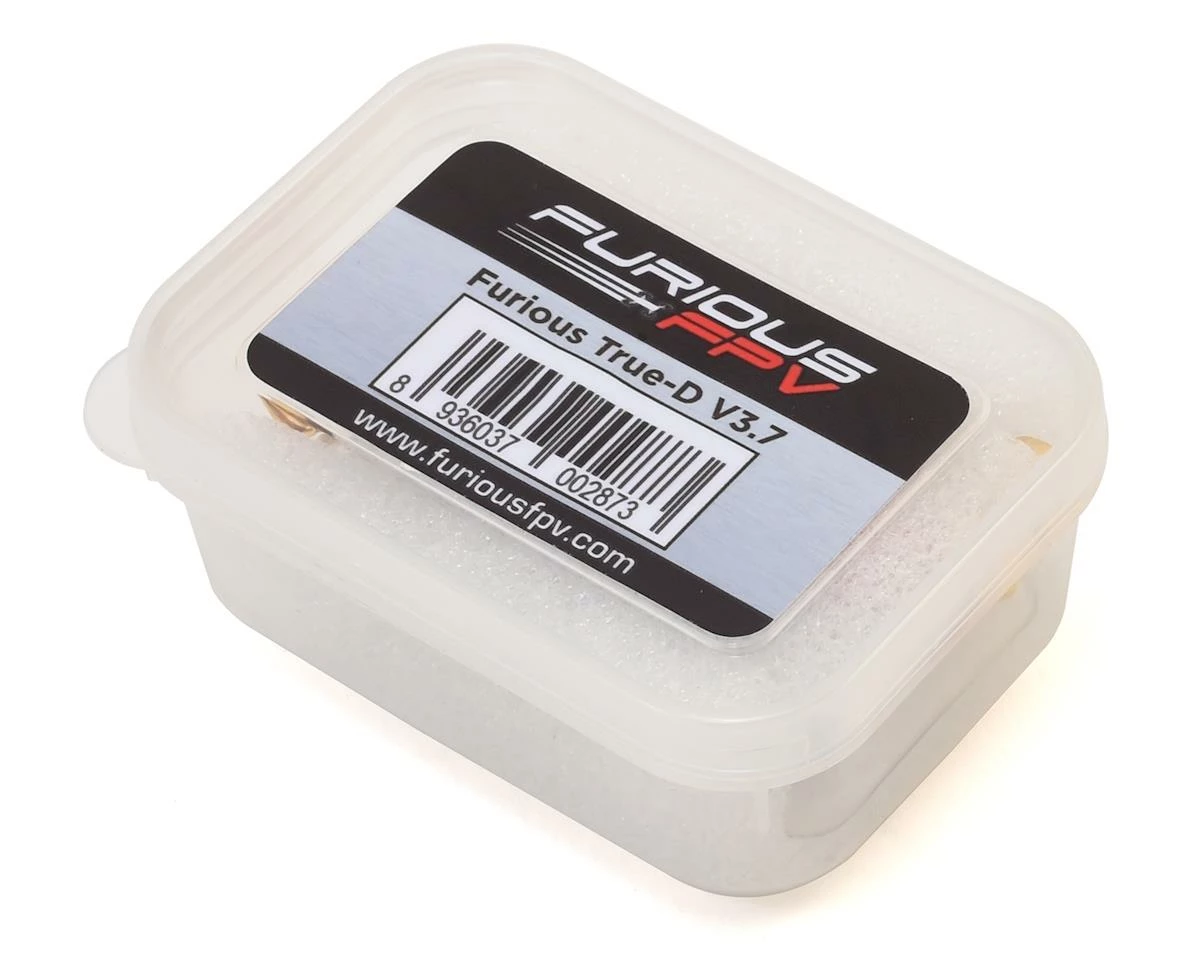

• (1) Plastic Housing w/ Setup View Finder

This product was added to our catalog on February 20, 2017
