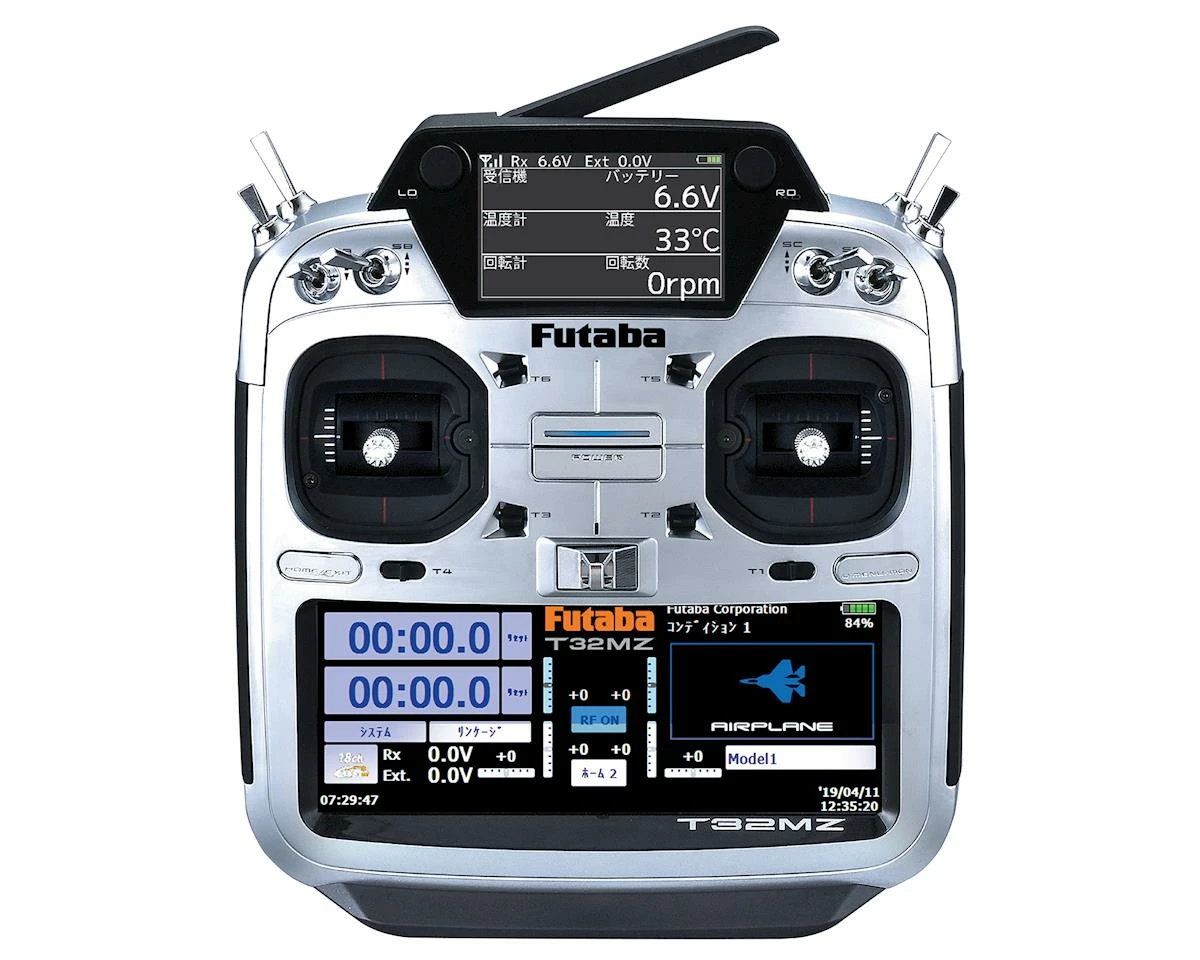

The Futaba 32MZ is an incredible transmitter that houses all the technology and features that Futaba is known for, and then some. Built on the trusted FASSTest 2.4GHz system, users will easily link to previous models. BiDirectional communication allows pilots to receive telemetry data from the RX to their TX. Thanks to the secondary top screen, configuring and reading telemetry information has never been easier.
Offered in both “Airplane” and “Helicopter” configurations, the differences between both are minimal. Airplane version is equipped with a ratcheting throttle stick, and helicopter is equipped with a smooth throttle stick.
Features at a Glance:
- Channel Expansion (Multiprop Function)
- S.Bus2 System Programming
- Windows Compact 7 Embedded
- Color LCD Main Display
- Color LCD Sub Display
- Music Playback
- Voice Recording
- SD Card Compatible
- Dual Ball Bearing Gimbals
Linear channel – 14 channels (2 channels are used by multiprop function)
ON/OFF channel – 2 channels
Multiprop channel – 16 channels
The resolution of the multiprop channel is lower than that of the linear channel.
- Operating multiple multiprop channels simultaneously may reduce the operation response of the multiprop channel.
Multiprop channels can not use the mixing function.
Futaba’s S.Bus2 System allows multiple servos, gyros, and telemetry sensors to be installed and programmed with minimal cables and hassle.
Windows Compact 7
T32MZ utilizes Microsoft Windows Embedded Compact 7, which offers outstanding dependability and valuable resources for many programming possibilities.
The main display utilizes a HVGA (640×240 pixel) full color backlit LCD touch screen. The screen is manufactured with a transflective construction which enables both indoor and outdoor visibility. Additionally the sub display uses a color LCD as well. This allows pilots to easily read telemetry data separate from the main display. Just like the main, the sub display uses a reflective LCD that provides good visibility for all lighting conditions.
High Quality Gimbals
Each axis is supported by dual ball bearings, ensuring buttery smooth operation and feedback. Additionally the gimbals are paired with magnetic potentiometers which will provided a higher precision and longer lifespan.
Operation System: 18 Channel, FASSTest/FASST/T-FHSS/S-FHSS
Battery: 3.8V L1F6600B 1s 3.8V LiPo Battery (6600mAh)
Power Output: 100mW EIRP
Weight (w/Battery): 2.48lbs | 1126g
What’s in the Box:
- (1) Futaba 32MZ Transmitter
- (1) R7108SB Receiver
- (1) LT1F6600B LiPo Battery
- (1) TX Charger
- (1) Switch Harness
- (1) Tool Box w/ adjustment jig
- (1) Neck Strap
- (1) Short Manual
- (1) Transmitter Case
