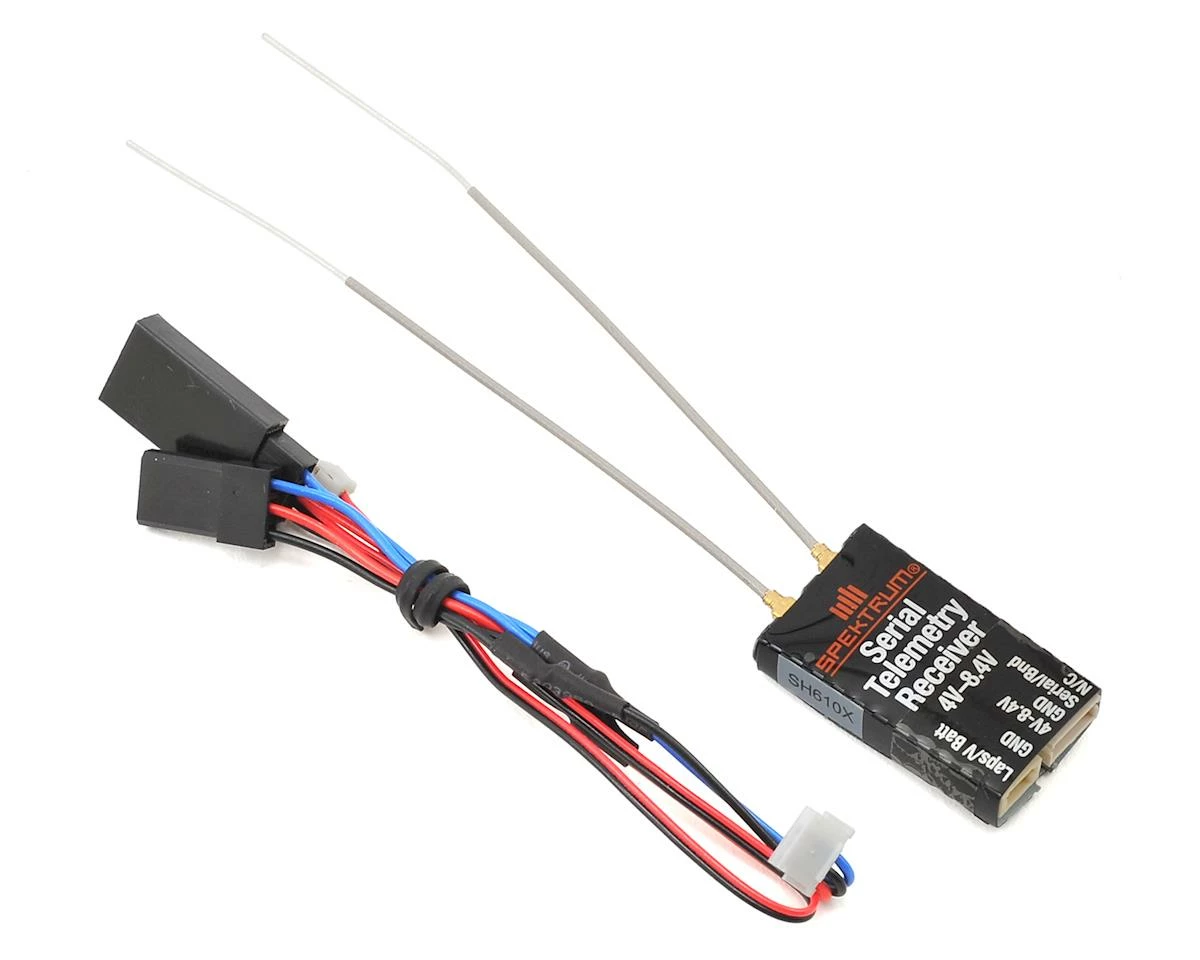

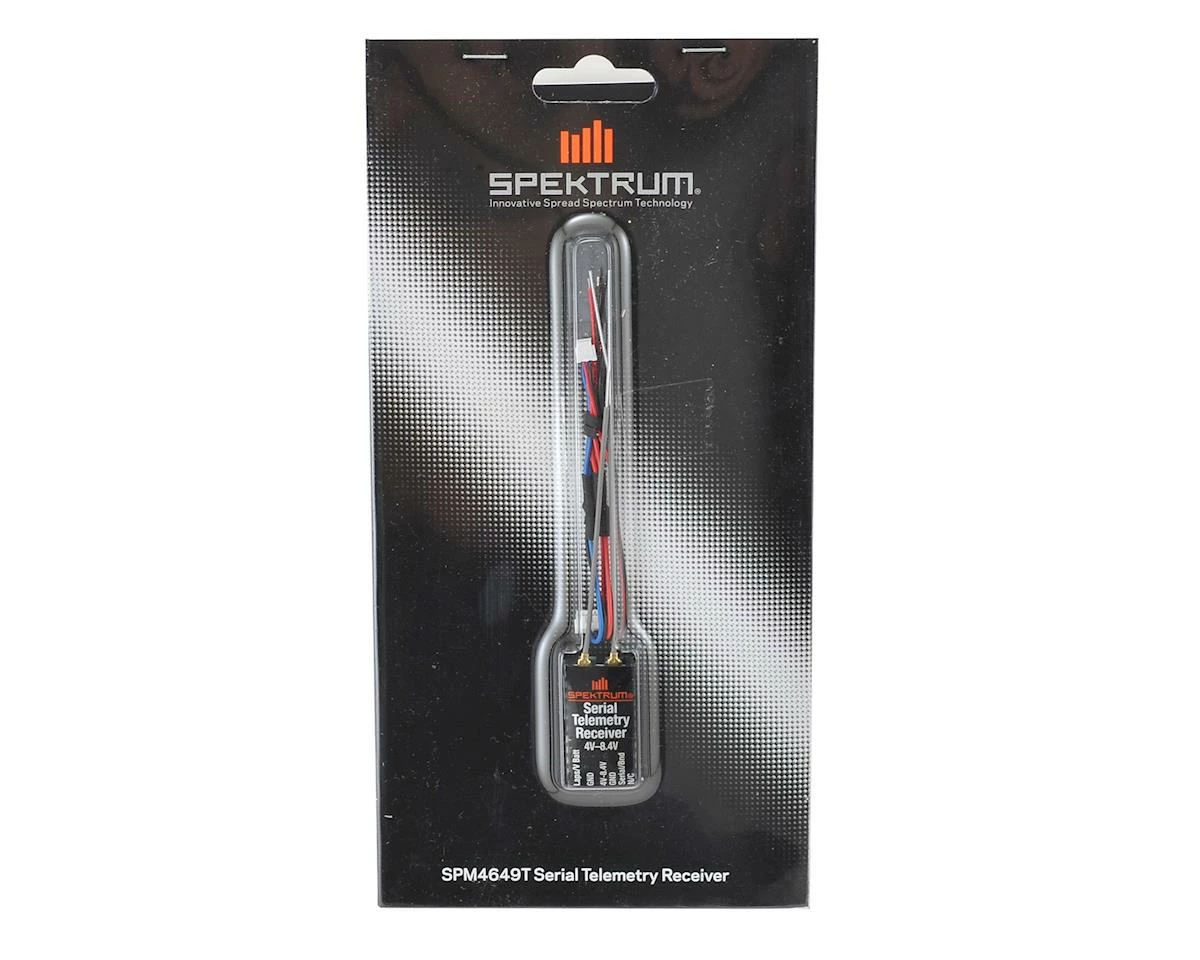

Spektrum RC DSMX Quad Racing Serial Receiver w/Telemetry

The Spektrum quad racing serial receiver (SPM4649T) offers full-range performance with integrated telemetry providing FPV racing enthusiasts with a serial receiver that can transmit vital telemetry data. Like the previous SPM4648 serial receiver, the 4649T offers a 1-wire serial connection that is compatible with most flight controllers (FC). Current improvements on the 4649T receiver include input for telemetry data such RPM, battery voltage and a many more features. Spektrum enthusiasts with telemetry capable transmitters such as the DX6, DX8, DX9 or DX18 can now receive on-demand telemetry data, and by using the voice functionality of compatible G2 transmitters, can have specific telemetry data outputted via the on-board audio system.

Features:

• Small size and lightweight design
• Works with most popular flight controllers
• Single line connection provides output to FC while receiving telemetry input from FC or battery
• Dual antennas for optimal range and RF performance

Telemetry options include:

• Provided directly from receiver
• Flight log data
• Battery voltage
• RPM
• Lap Timer
• Provided by external device e.g.: Flight Controller
• Flight log if using more than 1 receiver
• Battery voltage
• RPM
• Lap Timer
• Current draw and total mAh consumption
• Temperature
• All other data the FC can send that we support such as GPS, accelerometer date, ESC data, etc…

Specifications:

• Length: 1.2 inch (30mm)
• Width: 0.6 inch (16mm)
• Height: 0.2 inch (6mm)
• Weight: 0.1 ounce (3 grams)
• Input Voltage: 4-8.4V

This product was added to our catalog on November 1, 2016
