Team BlackSheep Stardust SB5 Race Edition Drone Frame Kit

Team Blacksheep has built the Stardust platform on a realization that cutting frames out of flat plates is not enough! Each Stardust SB5 is molded by hand, starting with raw carbon fibers. With this process the material reaches unparalleled stiffness, which translates to superior flight performance, resilience to vibrations and insane robustness in crashes. This is the next step in race frame design!

The RACE version wastes no time in making things pretty. We pack as many carbon strands into the mold as we can, and we give it a good sanding when it comes out. That’s it. If you’re trying to win a beauty contest, this is not the frame for you. Then again, this is drone racing!! We’re also including steel screws, as they are a bit more forgiving to snapping under hard impacts, and they allow us to further lower the price.

This is a involved build. It does not include motor mounting screws, or stack screws. It’s a tight fit, but most of the 4-in-1 ESC’s will fit. TBS strongly suggests the use of mounting boards for VTx’s and receivers. Cameras should be micro size.

Material: Special Handmade Carbon Fiber Composite

Motor to motor dimensions: 200mm

Motor mounting holes: 16mm & 19mm

Thickness of bottom plate: 4.5mm, +/- 0.1mm

Screws: M3 x 12mm Black, Steel

Frame weight: up to 65g including metal hardware

Props: Fits up to 5″ props

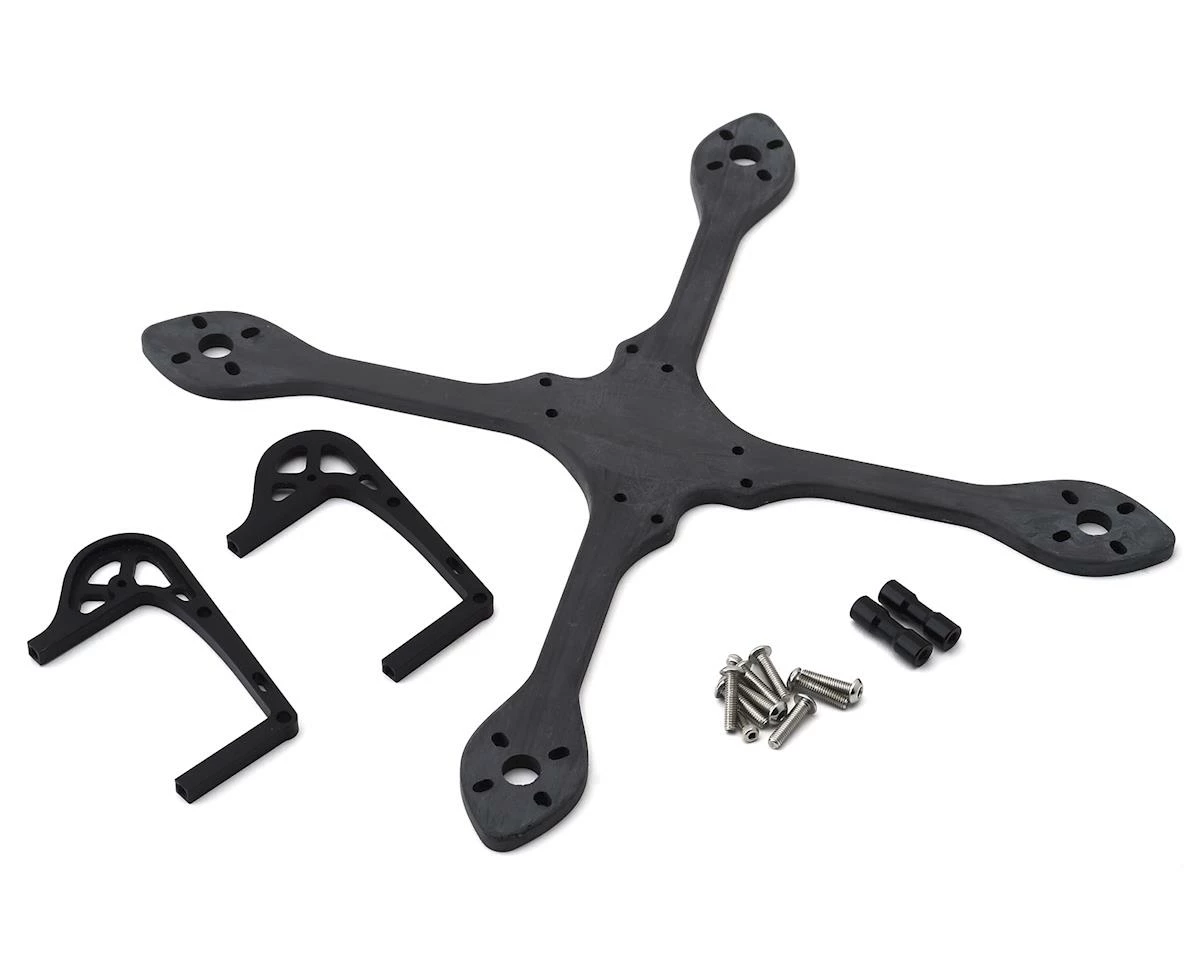

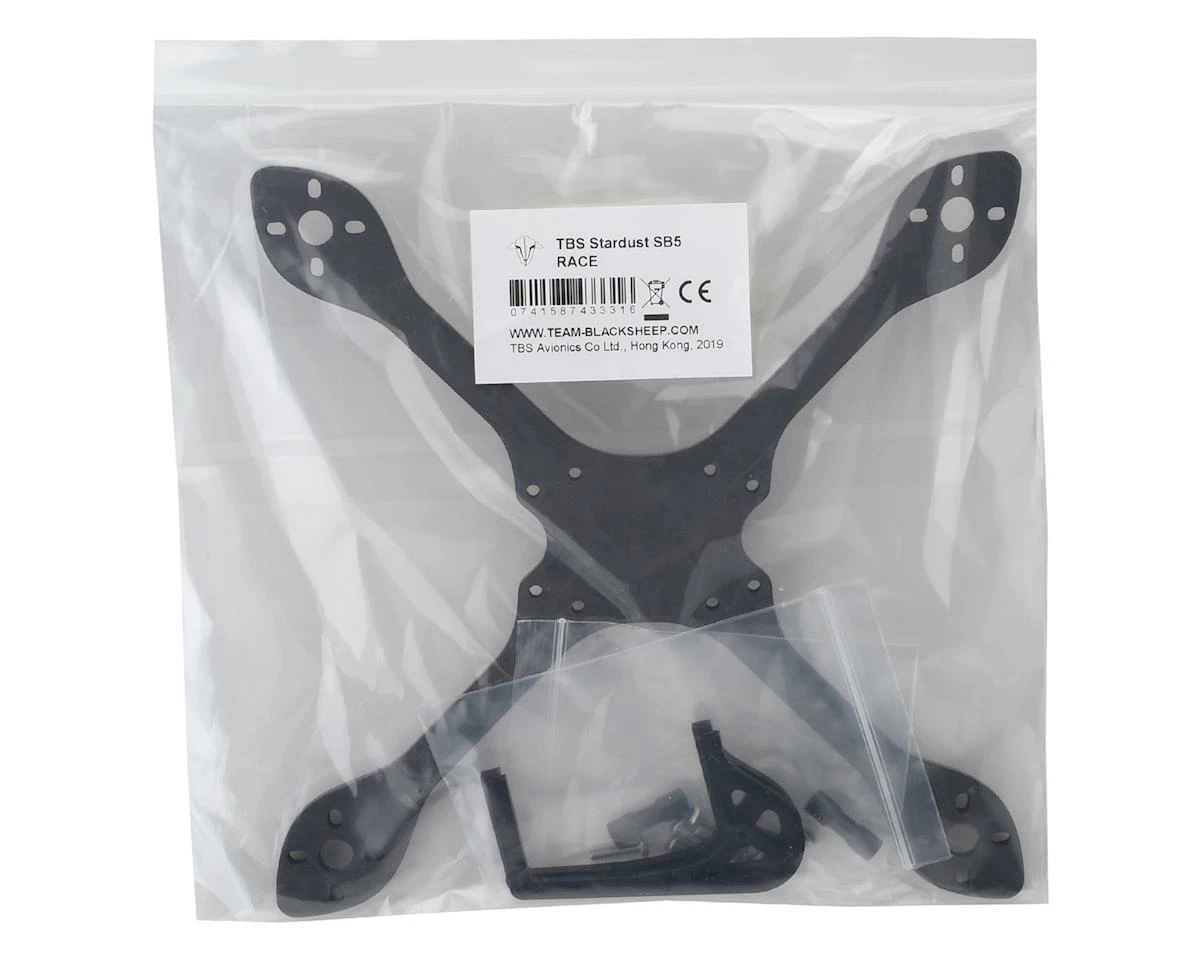

Included in the Package:

• (1) Stardust SB5 molded carbon bottom plate (Rough Finish)
• (2) Aluminium plates
• (8) M3 x 12 screws (steel)
• (2) M2 x 6 camera screws
• (2) M3 x 19 standoffs black (polished finish)
