Team BlackSheep Unify EVO 5.8GHz Video Transmitter (25-800mW) (u.Fl)

The Team BlackSheep Unify EVO 5.8GHz Nano VTx Video Transmitter is the latest technology in TBS video transmitters! This transmitter comes with a built-in graphical OSD and microphone, to match all the protocols and transmit all the power levels! This makes it a perfect companion for any situation where you don’t have any OSD, or want to benefit from the simplicity and clarity that the TBS OSD is known for.

This video transmitter was designed to make a product that would fit all use cases for analog video transmitters ever envisioned. Long range, racing, freestyle, wings, cars; You name it, the VTx will shine in this application! More features are still under development and they can be loaded via the TBS AgentX with the onboard USB port.

Operating Voltage: 6V – 26V (2S – 6S)

Supply current: (25mW) ~ 0.11A | (100mW) ~ 0.13A | (400mW) ~ 0.18A | (full power) ~ 0.24A

Operating Temperature: watch for normal airflow

Video Input Impedance: 75 Ohm

Weight: 7g

Dimensions: 30 x 23 x 5.5mm

Antenna Connector: u.FL socket

Video Format: NTSC/PAL

Audio: Microphone included

Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 29dBm (800mW)

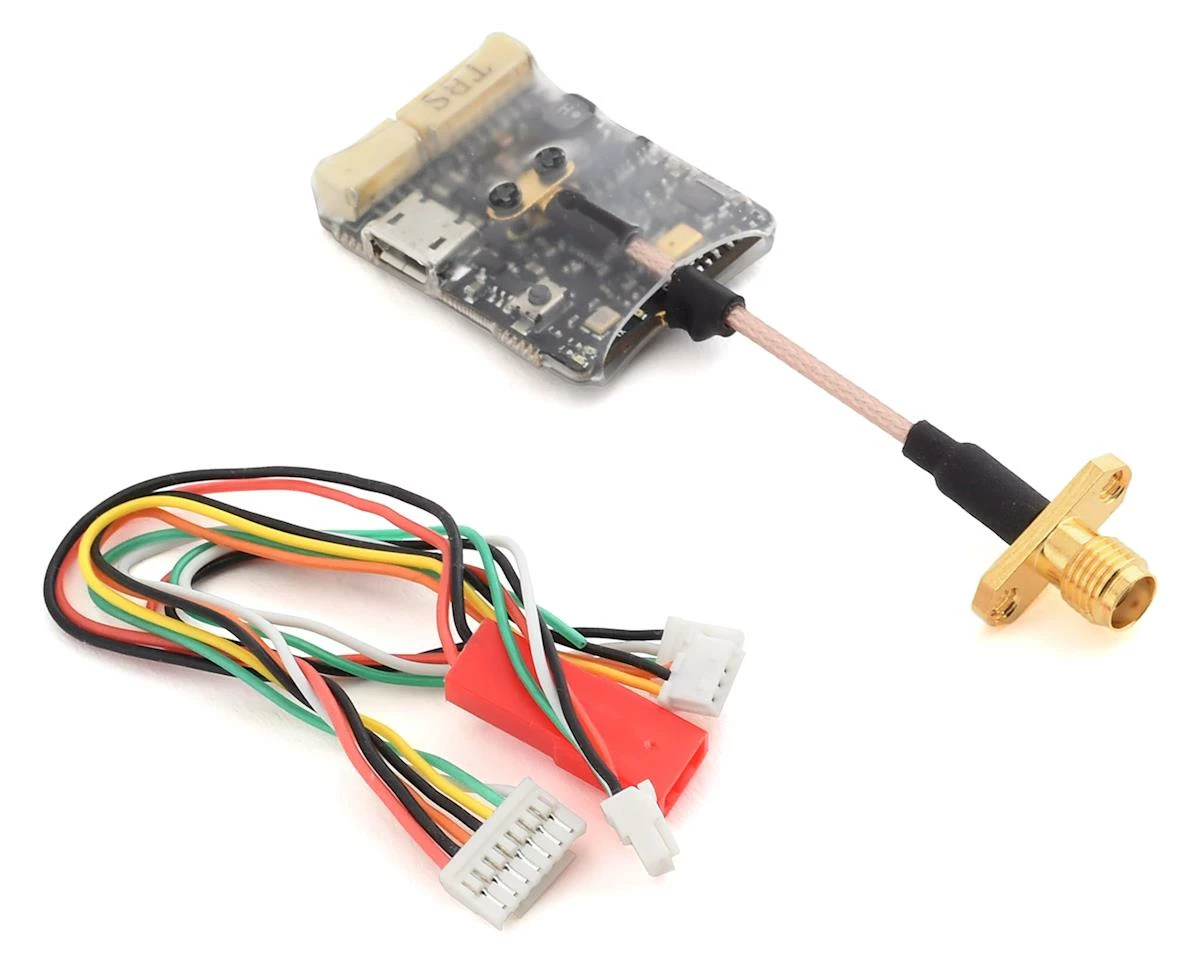

• (1) TBS UNIFY EVO 5G8 Video transmitter
• (1) u.Fl pigtail SMA
• (1) Power, Camera and CRSF cables
