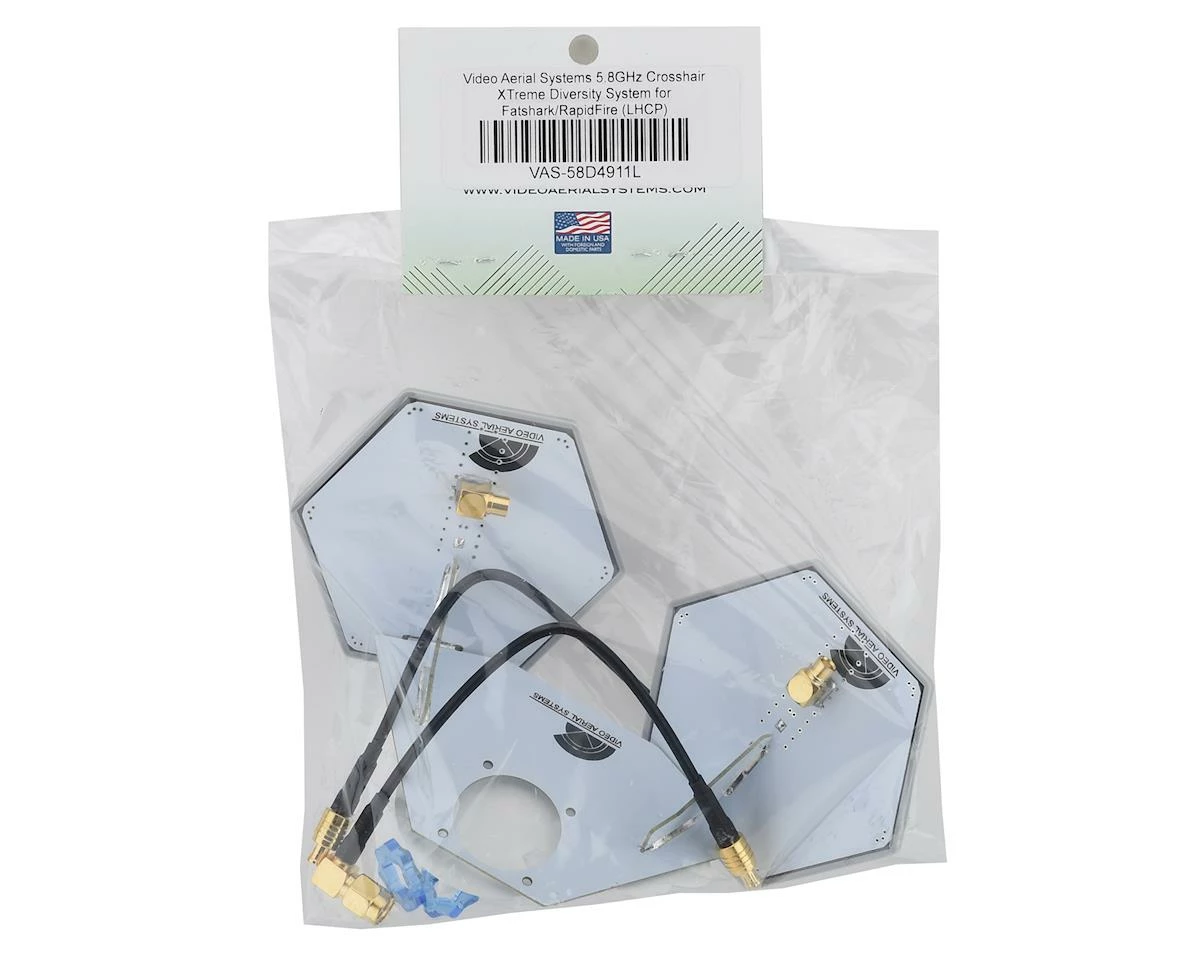

Video Aerial Systems 5.8GHz Crosshair XTreme Diversity System (LHCP) (Fatshark/RapidFire)

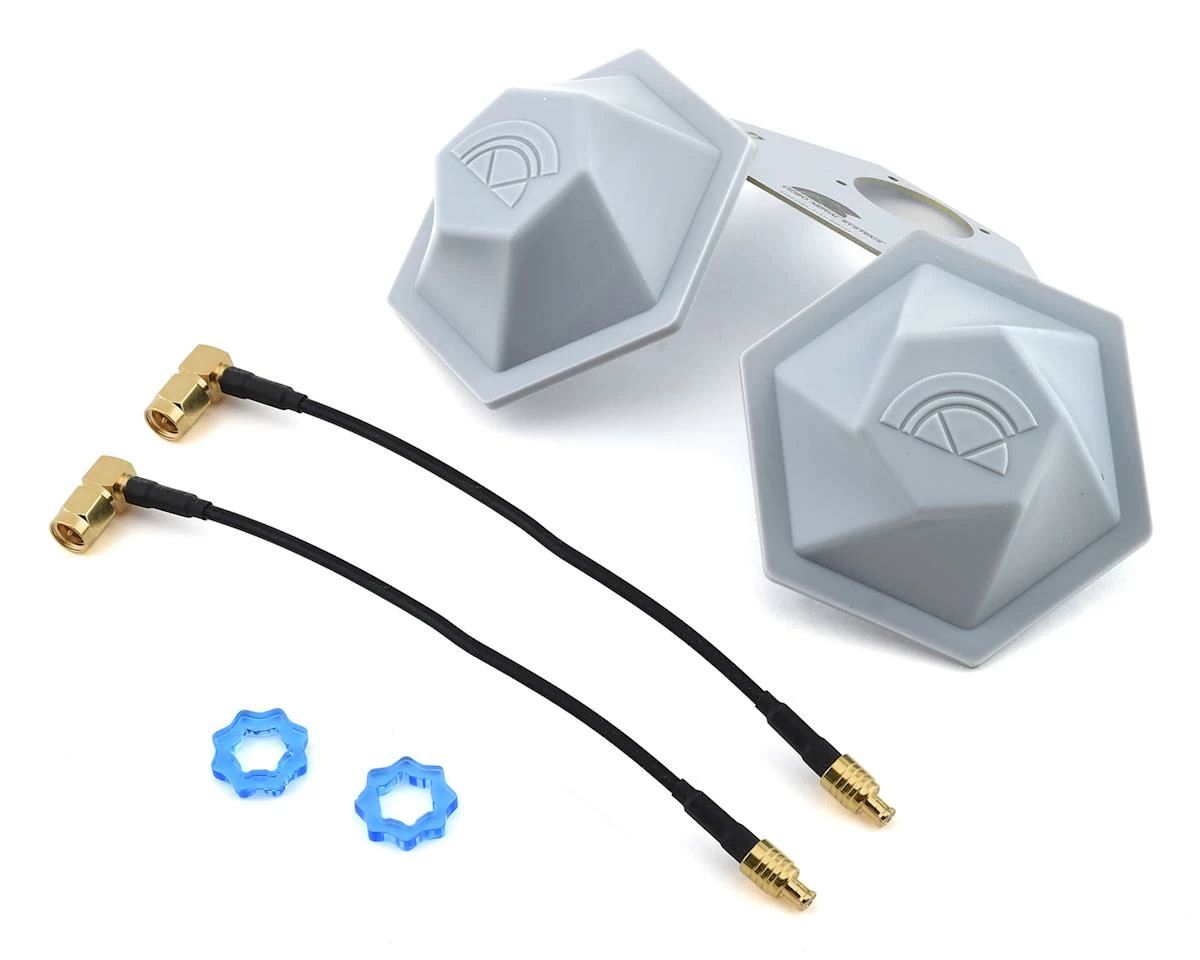

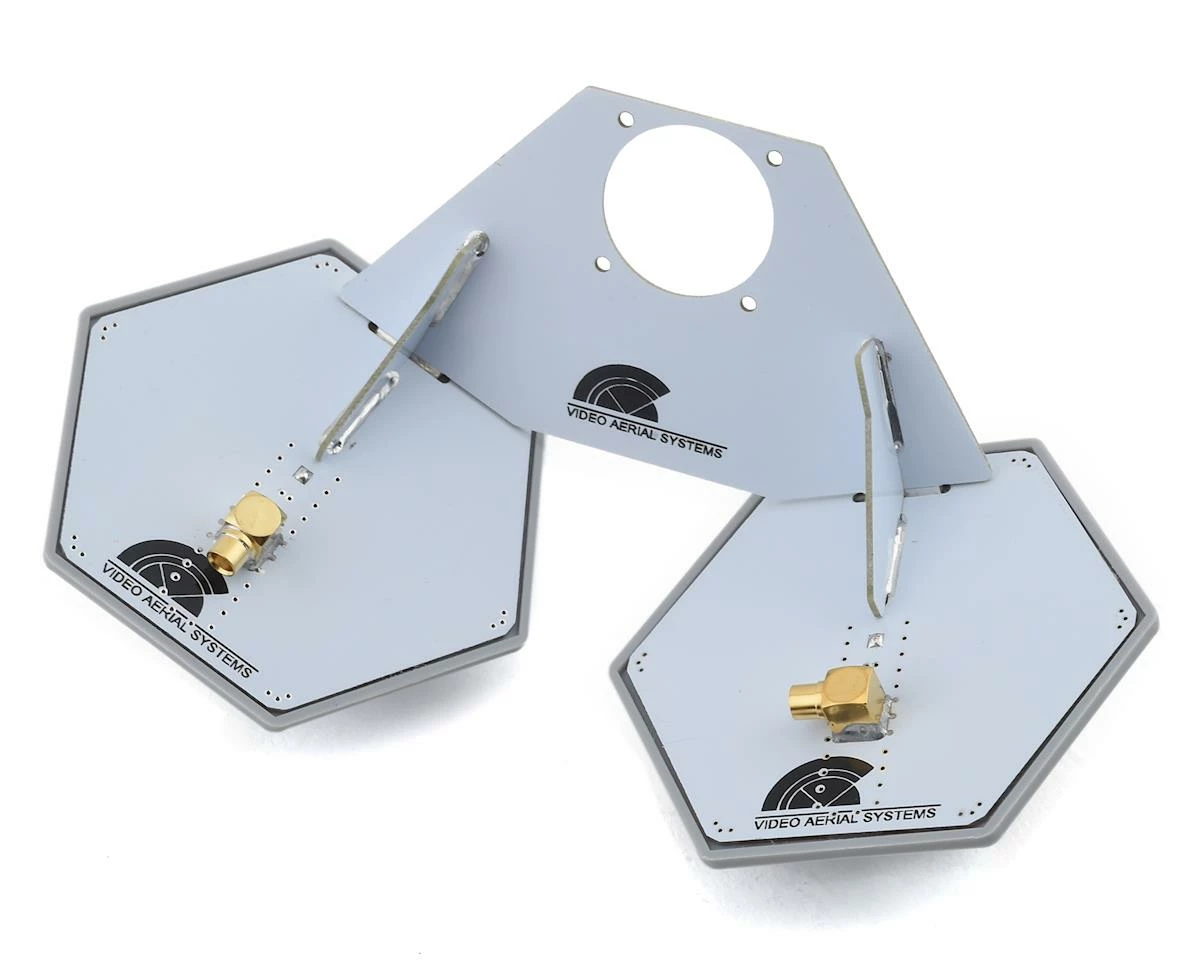

The Video Aerial Systems 5.8GHz LHCP Crosshair XTreme Diversity System combines 2 Crosshair Xtreme antennas, aimed upward and apart giving you wide beam of long range/high penetration coverage everywhere in front of you. Mounting directly to the Fatshark cooling fan intake is just under 3 minutes. Just screw down the mounting plate, connect the included cables to your diversity receiver and enjoy the benefits of a long range antenna system with full field coverage.

Gain: 10.25dbic

Axial Ratio: 0.98 (measured)

Flight beam width: 165 degrees

Flight beam height: 115 degrees

-3db point (combined): +/- 115 degrees wide, 75 degrees tall
