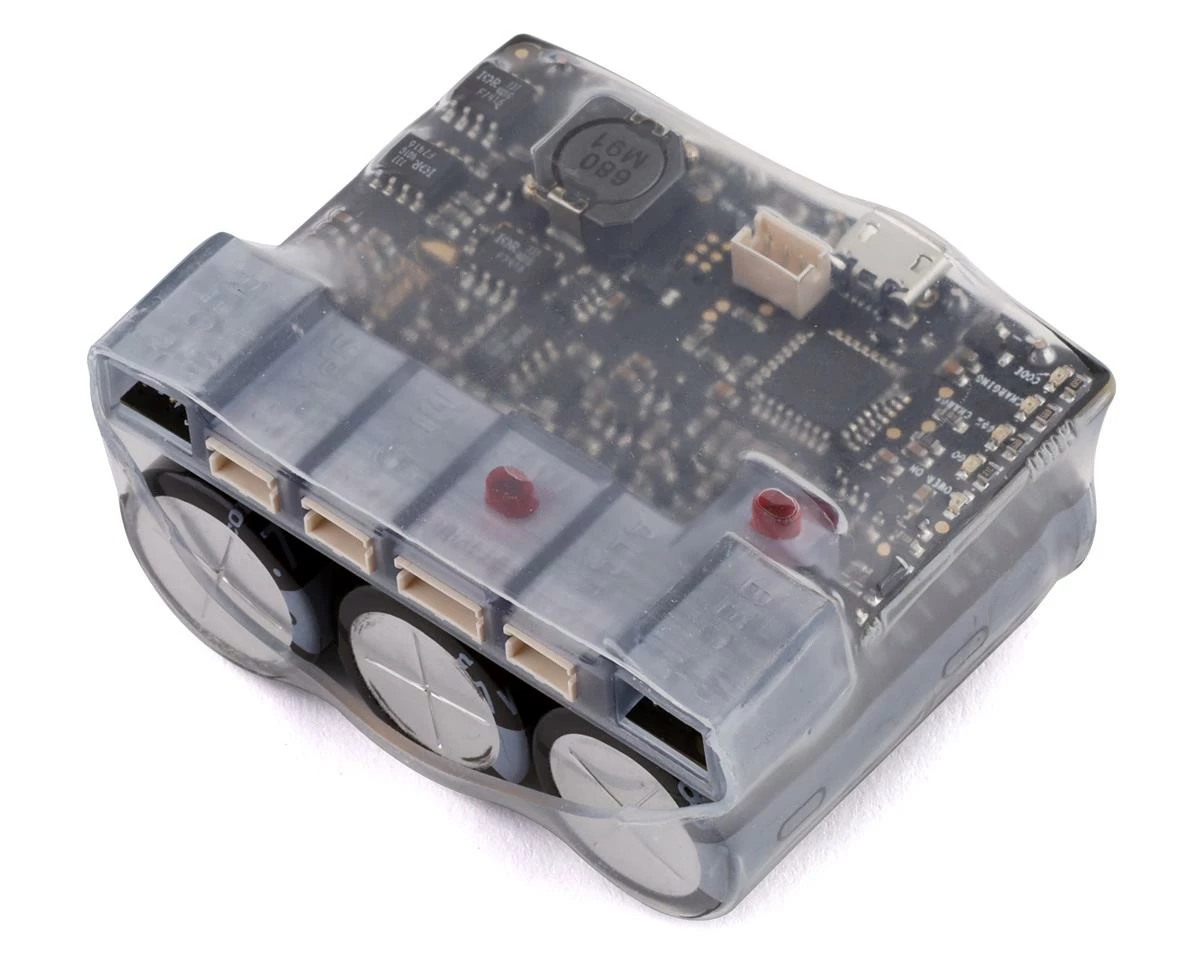

XGuard RC XGuard Pro C82 Power Protection Backup System

The XGuard RC XGuard Pro Power Protection Backup systems is the ultimate insurance policy for any aircraft that you own to aid in recovery and landing successfully in the event of a radio power system failure. Offered in two sizes, “C82” and “C100” refer to the size of the capacitance that the capacitors deliver (Farads). The C82 is best used for medium to large aircraft such nitro powered 60-120 sized airplanes, and 550-800 class heliecopters. Essentially any aircraft which are generally flown further away – and thus – need more time to return back to the landing spot safely.

• Backup Power Pack with 82 Farad capacitors
• Overvoltage protector
• Reverse polarity protector
• Short circuit protector
• Servo back EMF protector
• Static electricity protector
• 200 event logger
• Two Telemetry ports. One for Mikado and one for Spektrum. Optional expansion modules for Futaba S-BUS, Jeti and FrSKY
• Fault tolerant design defaults to fully connected in case of malfunction
• One Remote Board port for controlling the system from the optional remote board
• Strobe Alarm Light port to connect the optional Strobe light or optional Sonic alarm (XBuzzer)
• Four power Ports:
• Input: Master & slave from ESC
• Output: Master & slave to receiver, or flybarless gyro system
• Slow current draw ramp-up to prevent overwhelming the ESC with inrush charging current.
• Protection against over-charging the supercapacitors above 8.1V for long term supercapacitor durability
• Pin-type Servo Connectors to avoid soldered wires that can fatigue and break
• Real-Time Operating System with mission Critical Coding will keep on attending and reacting to alarm events regardless of other functions working at the same time.

• ESC mode for small undervoltage sensing from ESC’s BEC
• BATT mode for receiver battery empty sensing when voltage drops to 5.5V
• Daisy chainable for large Aircraft allows to put several daisy chained XGuards to add capacity

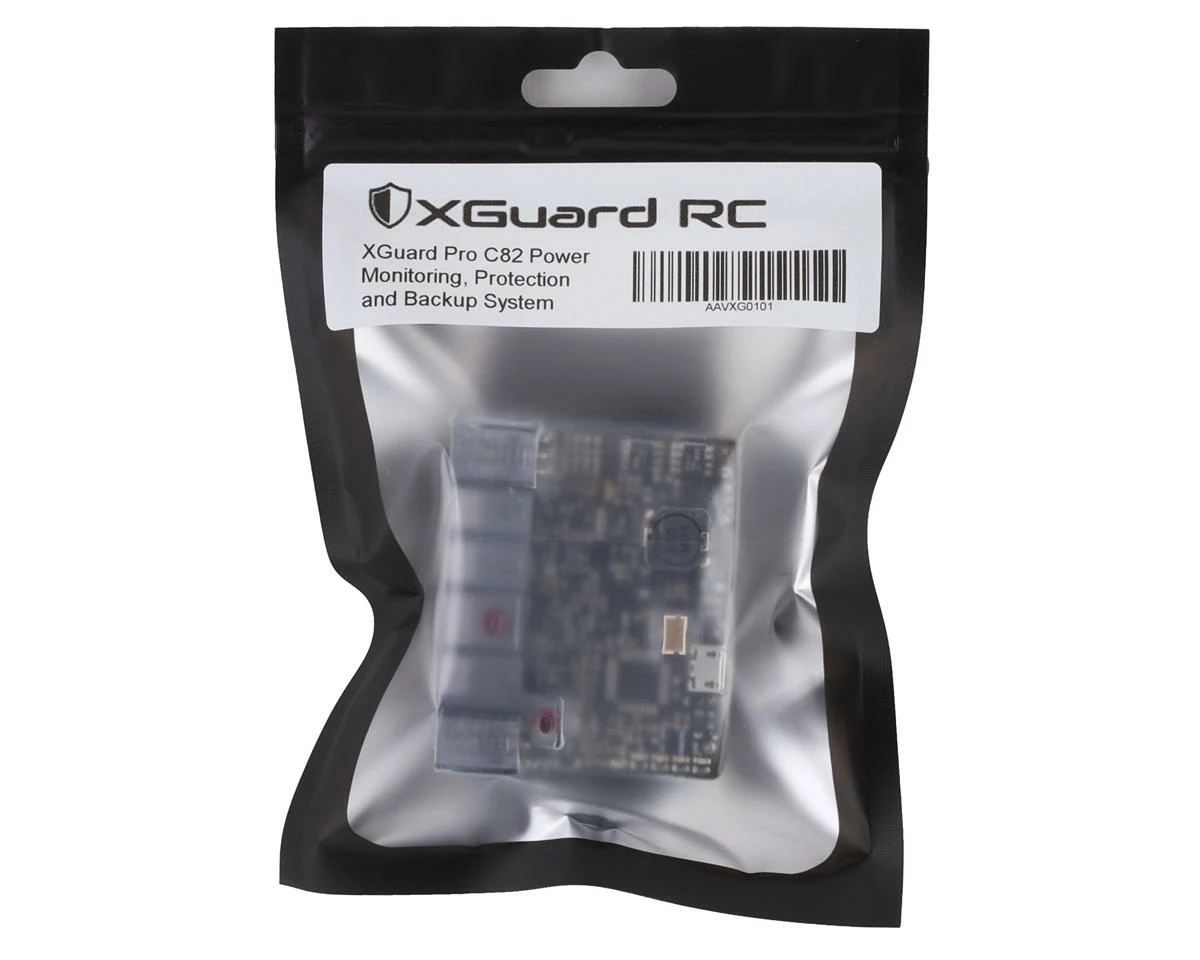

• (1) XGuard Pro C82 Backup Power System

 Specifications:

Dimensions: 56x45x27mm
