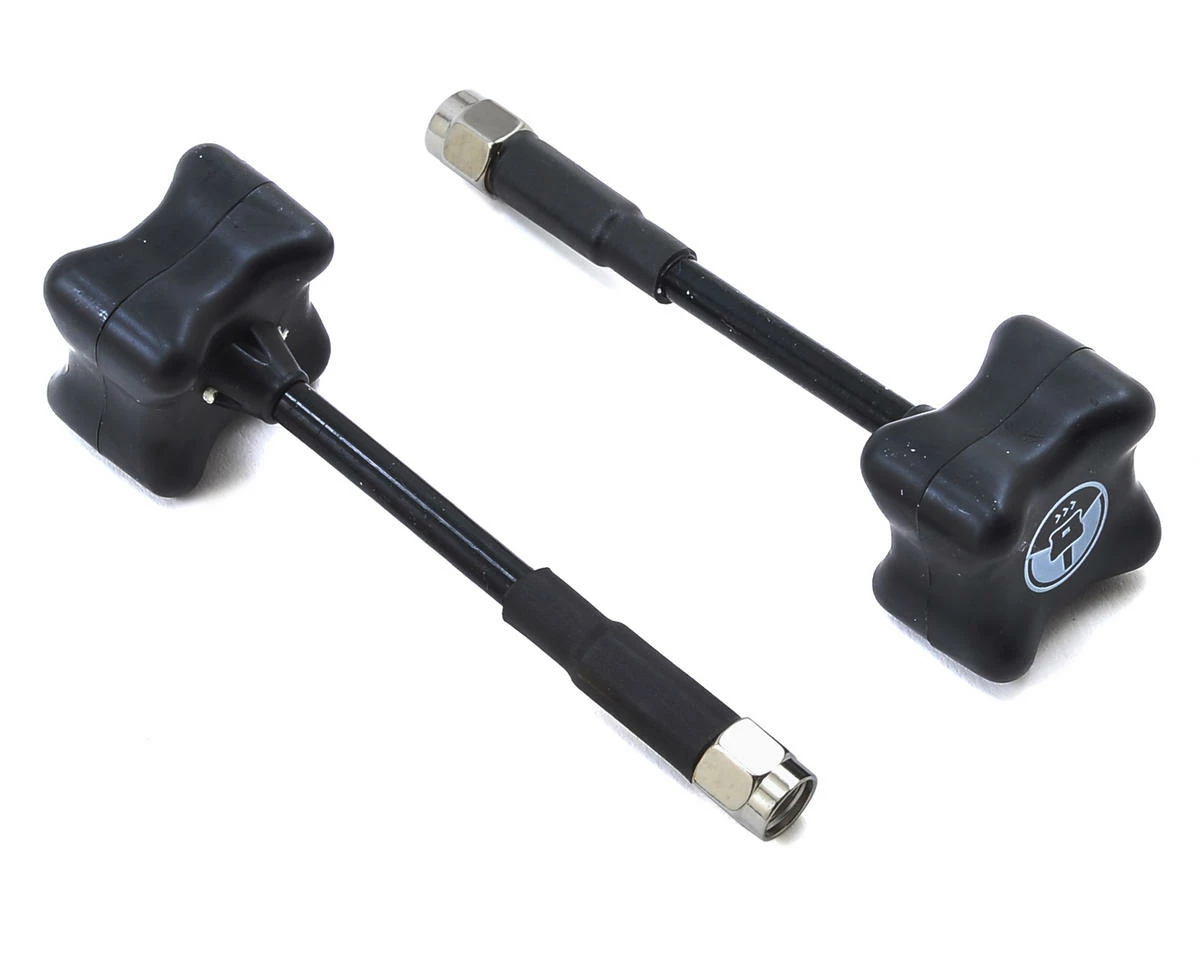

Team BlackSheep TBS/VAS 5.8Ghz Triumph Antenna Set (2) (RP-SMA)

The TBS Triumph 5.8GHZ Antenna is a step up from the current offerings from many other parties within the FPV world. Video Aerial Systems LLC (IBcrazy) and Team BlackSheep have come together to re-invent how the modern 5.8 circular polarized antenna should look and perform.

In a quest for the cleanest video signal and best range possible, Video Aerial Systems and Team BlackSheep have ventured way beyond the traditional bent lobes of Cloverleaf designs and invested significant time and effort in finding the best antenna designs known to man, and modifying them specifically for FPV use.

After extensive design and testing, a crucial focus point was making sure the Triumph was durable enough to take even the toughest of abuse. After many test flights and extensive feedback from pilots, it was decided to use a double-jacket heavy duty Semi-Rigid cable and tin-plated connectors. For protection the Triumph was created with a special foam-filled and ultrasonic welded enclosure to secure the antenna from inbound trees, or other objects.

Features:

• Manufactured and tested to highest standards
• Superior range and signal quality
• Extra compact and low weight
• Ultrasonic welded and foam infused cover for ultimate crash-protection

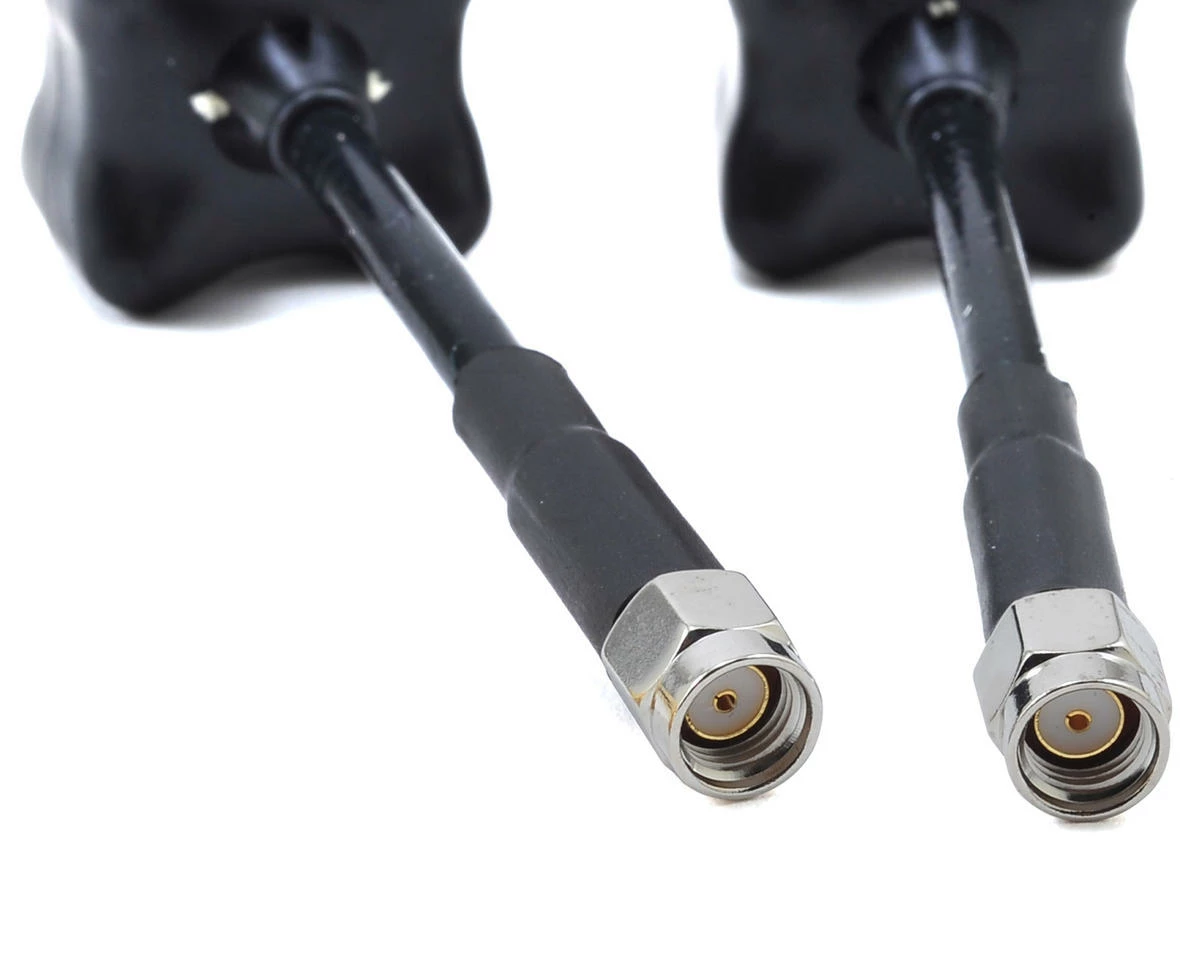

• Double-jacket semi-rigid cable for heavy impact resistance

Includes:

• (2) TBS Triumph antennas (RP-SMA)

Specifications:
Frequency range: 5500-6000MHz
Gain: 1.26dbic
Axial Ratio:   0.74
Cable: RG402 (heavy duty)
Weight: 11.5g
Height: 85mm, 3.3 in

This product was added to our catalog on May 11, 2016
